Install Tools

Before starting performance testing, you need the following tools set up on your machine.

Required Tools​

Google Chrome​

Chrome is needed for both Fiddler proxy setup and the Blazemeter recording extension. Install it first if not already on your machine.

Download: https://www.google.com/chrome/

Apache JMeter​

JMeter is the core tool for creating and running performance tests.

Steps:

  1. Install Java JDK 21 (recommended for latest Groovy support and to avoid deprecation issues with plugins)
  2. Download JMeter from https://jmeter.apache.org/download_jmeter.cgi
  3. Extract the zip file to your preferred location
  4. Add JMeter bin/ folder to your system PATH environment variable
    • This allows you to run jmeter from any terminal location
    • Windows: System Properties > Environment Variables > Edit Path > Add your JMeter bin path (e.g., C:\apache-jmeter-5.6.3\bin)
  5. Run jmeter from terminal or run jmeter.bat from the bin/ folder

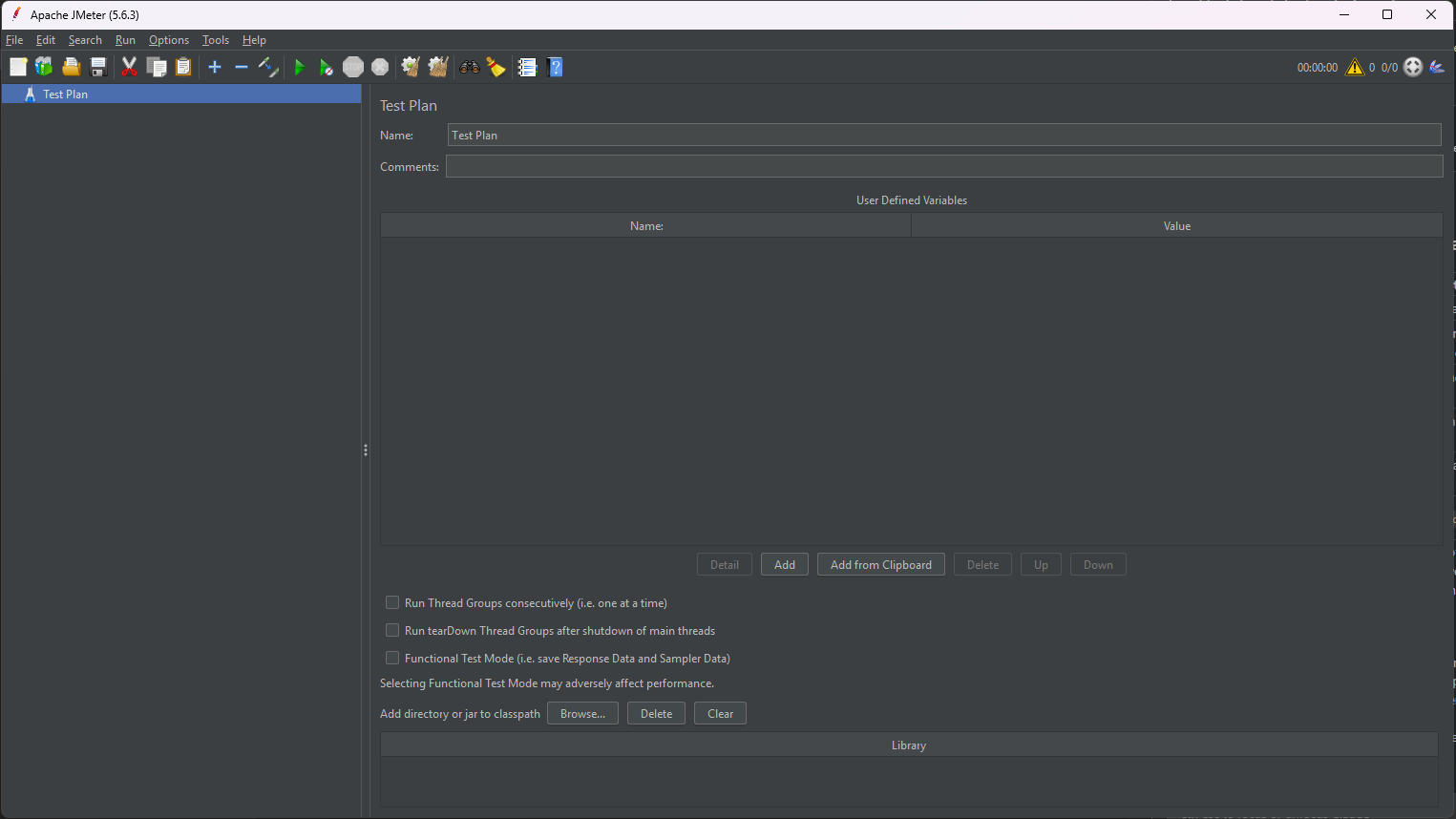

JMeter GUI after first launch

Verify: JMeter GUI should open with an empty Test Plan as shown above.

Fiddler​

Fiddler is used to capture and inspect HTTP/HTTPS traffic. This is essential for correlation work later.

By default, Fiddler captures all traffic from your machine, which creates a lot of noise. To only capture traffic from your test flow, we set up Fiddler as a proxy and launch Chrome through that specific port.

Steps:

  1. Download Fiddler Classic from https://www.telerik.com/fiddler/fiddler-classic

  2. Install and launch Fiddler

  3. Enable HTTPS decryption: Tools > Options > HTTPS > Check "Decrypt HTTPS traffic"

  4. Fiddler will prompt you to install its root certificate - click Yes to trust it (requires admin permission)

    • This is required for Fiddler to decrypt HTTPS traffic
    • Without it, HTTPS requests will show as tunnels and you won't see the actual request/response content
    • If you missed the prompt, go to Tools > Options > HTTPS > click Actions > Trust Root Certificate

  5. Note the proxy port: Tools > Options > Connections (default is 8888)

  6. Launch Chrome using Fiddler's proxy to capture only Chrome traffic:

    chrome.exe --proxy-server="http=127.0.0.1:8888;https=127.0.0.1:8888"

    Note: If chrome.exe is not in your PATH, use the full path instead:

    "C:\Program Files\Google\Chrome\Application\chrome.exe" --proxy-server="http=127.0.0.1:8888;https=127.0.0.1:8888"

Tip: Create a shortcut with the proxy flag so you don't have to type it every time.

Note: On macOS, or if you do not have access to Fiddler, use mitmproxy instead. See Recording with BlazeMeter + mitmproxy. It runs on Windows too.

Verify: Open the proxied Chrome, visit any website, and confirm Fiddler captures only that traffic.

Blazemeter Chrome Extension​

Blazemeter extension records your browser actions and exports them as a JMeter .jmx file.

Steps:

  1. Open Chrome Web Store and search for "Blazemeter"
  2. Install the BlazeMeter | The Continuous Testing Platform extension
  3. Create a free Blazemeter account (required to export .jmx files)
  4. Pin the extension to your toolbar for easy access
  5. Configure Advanced Options - click the extension icon > Advanced Options and make sure:
    • Record Ajax Requests is enabled (not enabled by default - we need this to capture page navigations and dynamic content)
    • Randomize Recorded Think Time is disabled (we will configure proper timers later in script enhancement)

Verify: Click the extension icon and confirm you see the recording controls with the correct settings.

Optional Tools​

These are not required to get started but are useful for advanced workflows.

Python​

Used for test data preparation - generating data, splitting CSV files across machines for distributed testing.

Steps:

  1. Download Python from https://www.python.org/downloads/
  2. During install, check "Add Python to PATH"

Verify: Open terminal and run python --version

InfluxDB + Grafana​

Used for real-time monitoring of JMeter test results via Backend Listener. Covered in detail in Section 11 - Backend Listener.
